Product Description:
This product is an advanced explosion-proof junction box made of stainless steel material with a beautiful appearance, meeting the needs of various environments; The surface is treated with stainless steel wire drawing, and surface spraying can also be chosen according to the needs; The product is not only sturdy and durable, but also ensures the quality of the product; Equipped with 3 or 6 G3/4 "threading ports to choose from; equipped with internal power modules, fiber optic transceivers, power circuit breakers, etc., easy to install and maintain.

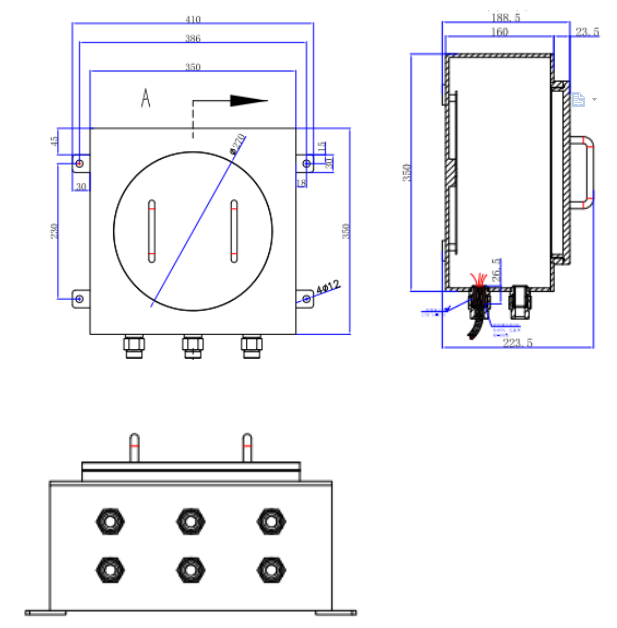

Product size:
Technical parameters:
| 型号 | DEK-JX350 |
| 一般参数 | |
| 防爆标志 | ExdⅡCT6 Gb/Ex tD A21 IP68，T80℃ |
| 防护等级 | IP68 |
| 材质 | 不锈钢304 或316L |
| 表面处理 | 不锈钢拉丝、可选表面喷涂 |
| 外形尺寸 | 350*350*158.5 |
| 内部空间 | 340(L) x 340(W) x 120(H) mm |
| 重量 | 20Kg |
| 出线孔数量 | 3月6日 |
| 出线孔规格 | G-3/4”外丝 |
| 环境温度 | -40C~+60C |
| 安装方式 | 壁装、底座、固定支架 |
