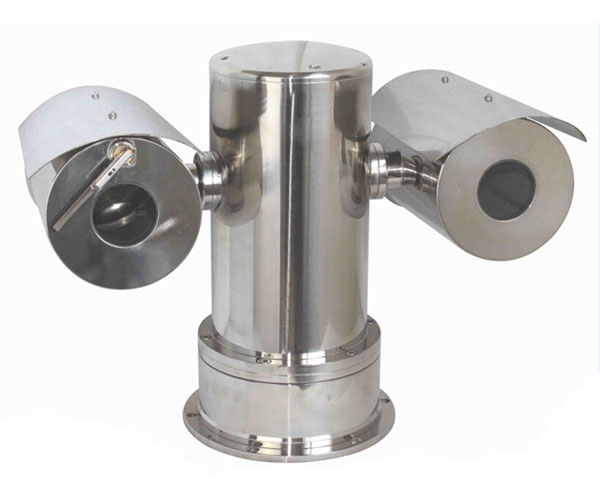

Explosion proof intelligent starry pan tilt camera

ExdⅡCT6 Gb/Ex tD A20 T80℃

Explosion proof certificate number: CNEx17.0052X

Mechanical indicators

Material: stainless steel 316L

Protection level: IP68

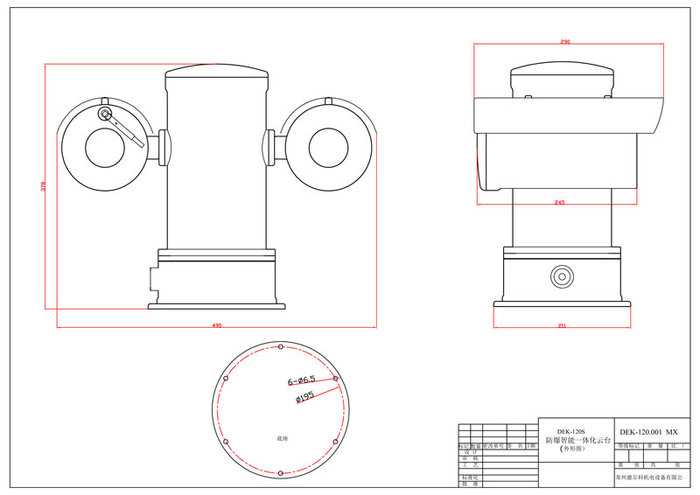

Dimensions of the inner chamber of the protective cover for use: 220 (L) x 80 (W) x 70 (H) mm

Horizontal rotation: 360 °

Vertical rotation:+90 °~-90 °

Horizontal rotation speed: 0.1-40 °/S

Vertical rotation speed: 0.1-40 °/S

Unit weight: 32Kg

Transportation weight: 35Kg

Installation method: fixed bracket, base, column

Electrical indicators

Input voltage: 220VAC/DC24V, only one of which is supported at the factory

Input voltage range: ± 10%

Working current: ＜ 250mA (220VAC), ＜ 3A (DC24V)

Power consumption: approximately 55W

Communication method: RS-485

Communication speed: adaptive

Communication protocol: PELCO-D/P, ONVIF2.0

Number of preset positions: 256

Pre positioning accuracy: ≤ 1 °

Electrical connection: 3-core power supply, 2-core shielded control signal, super Category 5 cable

High performance 2 megapixel 1/1.9 'CMOS

Equipped with 30x optical zoom, optical zoom f=6-180mm (F1.5 to 4.3)

The maximum resolution can reach 1980* 1080@60fps Clear image

Adopting full motion focusing, dynamic exposure, and dynamic balance algorithms with fully autonomous intellectual property rights

Supports 3D noise reduction, anti shake, fog penetration, ROI encoding and focusing, and privacy occlusion for 24 areas

Equipped with automatic aperture, electric shutter, and ICR filter switching functions to adapt to different monitoring environments

Applicable occasions

Suitable for large-scale warehouses, peripheral monitoring of residential areas, docks, parking lots, schools, stations, parks, and other large-scale monitoring places.

Product parameters

1/1.9 inch CMOS

Approximately 2.42 million pixels

≥ 1000TVL

1920 × 1080

Colorful silk 0.001Lux@F1.5 : ⿊⽩: 0.0001Lux@F1.5

≥ 55dB

Mobile/Mobile/Tracking/Outdoor/Indoor/Outdoor Mobile/Sodium Lamp Mobile/Sodium Lamp

1/1 to 1/30000s

16x optical

Dynamic ICR filter color conversion

6mm~180mm

Level: 61.2 º to 2.32 º (near to far focus)

10mm~1500mm (near to far focus)

50Hz: 25fps (1920 x 1080), 50fps (1920 x 1080), 25fps (1280 x 960), 50fps (1280 x 960), 25fps (1280 x 720), 50fps (1280 x 720)

60Hz: 30fps (1920 x 1080), 60fps (1920 x 1080), 30fps (1280 x 960), 60fps (1280 x 960), 30fps (1280 x 720), 60fps (1280 x 720)

50Hz: 25fps (704 × 576), 25fps (352 × 288)

60Hz: 30fps (704 × 480), 30fps (352 × 240)

50Hz: 25fps (1920 x 1080), 25fps (1280 x 960), 25fps (1280 x 720), 25fps (704 x 576), 25fps (352 x 288)

60Hz: 30fps (1920 x 1080), 30fps (1280 x 960), 30fps (1280 x 720), 30fps (704 x 480), 30fps (352 x 240)

H. 265/H.264BaselineProfile/H.264MainProfile/H.264HighProfile/M-JPEG

G. 711a/G.711Mu/AAC/G.722/G.726/MPEG2-L2

IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

Supports open APIs for software integration, standard protocols (Onvif, CGI, GB/T28181), DH-SDK, and third-party management platform interfaces

Using IE7 or higher versions (including IE7) for music, Firefox, Apple, and other IE browsers

Up to 20 channels (total bandwidth 48M)

Authorized username and password, as well as MAC address binding; HTTPS encryption; IEEE 802.1x Network Access Control (User List)

Multi level user permission management

Network output/analog output

PELCOD/PELCOP protocol, DH-SD1 protocol, SONY VISCA protocol

RS485: Baud rate holding 96001920038400bps, VISCA 232: fixed baud rate 9600

Built in Micro-SD card slot, supports SD/SDHC/SDXC (up to 128G), can hold automatic recording/alarm recording, can hold continuous transmission after interruption, and recording is not lost
