ExdⅡCT6 Gb/Ex tD A20 T80℃
Explosion proof certificate number: CNEx17.0052X

Intelligent fire point detection function with multi-level fire point detection, efficient detection and reduced false alarms

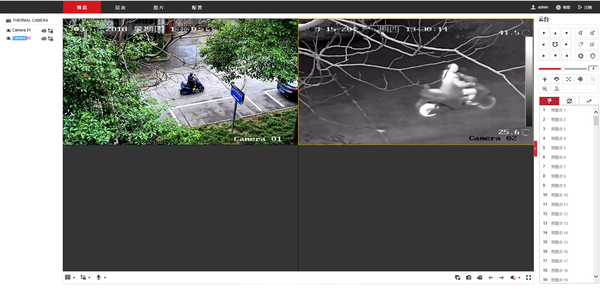

Visible light linkage doubles to check surrounding conditions

Perceived intelligent rules support area intrusion, boundary crossing, entry/exit area detection

Excellent thermal imaging image effect with a resolution of 640 x 512

AGC automatic gain adjustment, 3D noise reduction, DDE image detail enhancement

14 adjustable false colors

Thermal imaging automatic focusing supports automatic/semi-automatic/electric focusing

Pan tilt function continuously rotates 360 ° horizontally and vertically from -09 ° to+90 °

Key control speed horizontal 0.1 ° -40 °/s vertical 0.1 ° -40 °/s

300 preset positions with preset video freezing function

8 cruise scans, each capable of adding 32 preset points

4 pattern scans, with each path recording time greater than 10 minutes

Accurate temperature measurement (- T) maximum temperature cross positioning

Supports 1 line temperature measurement, 10 box temperature measurements, and 10 point temperature measurements

100 associated temperature measurement preset positions

Temperature measurement range: -40 ℃ -550 ℃

Temperature measurement accuracy: ± 2 degrees (or ± 2% of the range)

Temperature abnormal alarm

• Support for wipers

Supports 7 hardware alarm inputs and 2 alarm outputs

Outdoor IP68 protection level, lightning protection, surge protection, and surge protection

Mechanical indicators

Material: stainless steel 316L

Protection level: IP68

Horizontal rotation: 360 °

Vertical rotation:+90 °~-90 °

Horizontal rotation speed: 0.1-40 °/S

Vertical rotation speed: 0.1-40 °/S

Unit weight: 32Kg

Transportation weight: 35Kg

Installation method: fixed bracket, base, column

Electrical indicators

Input voltage: 220VAC DC24V

Input voltage range: ± 10%

Working current: ＜ 500mA (220VAC) Power consumption: approximately 100W

Communication method: RS-485

Communication speed: adaptive

Communication protocol: PELCO-D/P ONVIF2.0

Infrared distance: 50, 80, 100 meters

Number of preset positions: 256

Pre positioning accuracy: ≤ 0.1 °

Electrical connection: 3-core cable connects to power supply, 2-core shielded cable connects to control signal, coaxial cable outputs video signal or RJ45

Thermal imaging parameters

Sensor type: Vanadium oxide uncooled focal plane detector

Maximum image size 640 * 512

Pixel 17 μ M

Response bands 8-14 μ M

Noise equivalent temperature difference<50mk (@ 25 ° C, F #=1.0)

Focal length 50mm

Spatial resolution 0.34

Detection distance (m) (person: 1.8m * 0.5m, vehicle: 1.4m * 4.0m)

Detection vehicle: 4510 Detection person: 1471

Identification vehicle: 1127 Identification person: 368

Identification vehicle: 564 Identification person: 184

Field of view angle 12.4 × 9.9

F-value 1

Focusing on automatic/semi-automatic/manual

Multiple false colors such as black hot/white hot/iron red/rainbow on the color palette (a total of 14 modes)

Visible light camera parameters

Sensor 1/2.8 inch high-performance CMOS

Resolution 1920 x 1080

Focal length 4.5-135mm

Field of view angle 59.8-3.0 ° (wide angle telescopic)

Low illumination 0.05Lux @ F1.6

Wide dynamic support

Day night conversion support

Digital noise reduction 3D noise reduction

Focusing on automatic/semi-automatic/electric

The supplementary light function supports 500m laser supplementary light

Intelligent adjustment of laser light brightness and angle according to the scene

Region enhancement ROI region of interest enhancement

Close up range: 10-1500mm (wide-angle telescope)

Multiplying speed: approximately 2.7 seconds (optical, wide-angle telescope)

Exposure mode: automatic exposure/aperture priority/shutter priority/manual exposure

Focus mode: automatic focus/one-time focus/manual focus

Wide dynamic: off/on, 4-level adjustable

Video compression standard: H.264/MJPEG

Compressed output bit rate: 32 Kbps~16Mbps

Image settings: saturation, brightness, and contrast can be adjusted through the client or IE browser

Storage function: supports micro SD

Intelligent alarm: movement detection, obstruction alarm, memory full, memory error

Supported protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS, IPv6 (SIP, SRTP, optional)

Universal features: dual stream, heartbeat, password protection

Communication interface: 1 RJ45 10M/100M adaptive Ethernet port, 1 RS-485 interface

Interface protocols: ONVIF, PSIA, CGI
